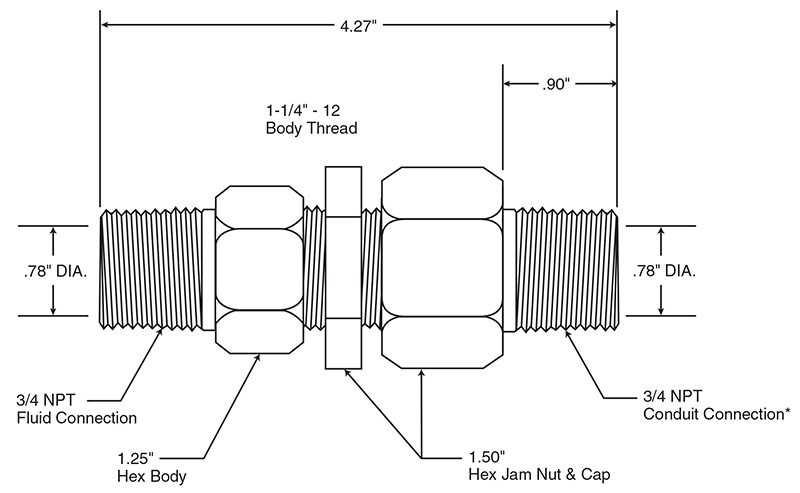

Series 200 Packing Glands
If a plain hex cap without conduit connection is required add prefix "H"
to the assembly number found below. Overall length is reduced by .90".
to the assembly number found below. Overall length is reduced by .90".
Assembly Numbers
0.156" grommet wire hole diameter
0.156" grommet wire hole diameter
1 Wire
2 Wire
3 Wire
4 Wire
6 Wire
221A
222A
223A*
224C
224A**
224A**
226A
* For vibration probes. Uses split grommet, assembly screw, and internal design.
** For vibration probes. Uses split grommet and two piece insert and follower.
** For vibration probes. Uses split grommet and two piece insert and follower.
×
![]()
